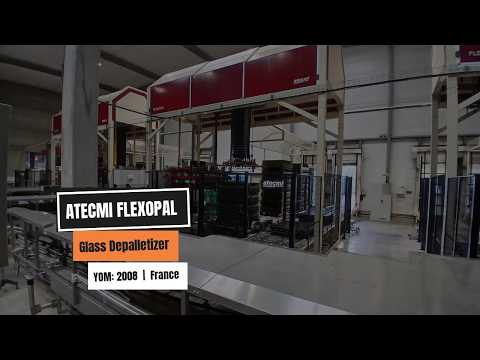

ATECMI FLEXOPAL Glass Depalletizer (2008)

ATECMI Neuglasabschieber

Overview

This ATECMI FLEXOPAL is an automatic depalletizer for empty glass bottles, built in 2008 and used on 750 ml wine bottles at an output of up to 12,000 bottles per hour. The gantry head grips each layer with inflatable tubes and sets it onto the discharge table. An integrated automatic strap cutter with strap intake removes the pallet straps without operator intervention, and magazines take up the interlayers and the empty pallets. The scope includes the pallet infeed and outfeed conveyors, the bottle outfeed conveyors and an ATECMI inliner.
Knodpfx Abe Adnxdsrjc

Technical data

- Manufacturer: ATECMI
- Model: FLEXOPAL
- Year of manufacture: 2008
- Output: up to 12,000 bottles per hour
- Containers: glass bottles, 750 ml (wine)
- Layer gripping: inflatable tubes

Equipment

- Gantry depalletizer with layer gripping head and overhead hood
- Automatic strap cutting and strap intake
- Magazines for interlayers and empty pallets
- Powered roller conveyors for pallet infeed and outfeed
- Bottle discharge table with outfeed bottle conveyors
- ATECMI inliner
- Operator panel with touchscreen and emergency stop
- Safety fencing with access doors
- Layout drawing available

Condition

Used. Out of production since the line was dismantled; the depalletizer is still installed and under power. Viewing on site is possible by appointment.

Availability

Available immediately. Location: France.
